Durable Reciprocating Drilling Rig Mud Pump

Name: Durable Reciprocating Drilling Rig Mud Pump
Brand: JINZHOU SHITAN
Price: 1 USD

Quality Durable Reciprocating Drilling Rig Mud Pump for sale

Brand Name : JINZHOU SHITAN

Model Number : BW250

Certification : ISO

Place of Origin : China (Mainland)

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Structure : pneumatic sump pump

Application : mud pump

Power : Electric

Fuel : Diesel

Pressure : High Pressure, low temperature

mud pump type : electric mud pump,diesel mud pump

Contact Now

Durable Reciprocating Drilling Rig Mud Pump

Product Description:

1. A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy, stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

Product Parameter:

BW-250
Type	Horizontal, Three-cylinder single-acting, reciprocal piston pump
stroke	100 mm
Liner Dia	80mm				65mm
Gears	I	II	III	IV	I	II	III	IV
Reciprocate Times(Times/Minute)	200	116	72	42	200	116	72	42
Displacement(liter/minute)	250	145	90	52	166	96	60	35
Pressure(MPa)	2.5	4.5	6	6	4	6	7	7
Dimension rate:	85%
Efficiency	72%
Power	15 Kw
Triangular section belts	B×5 410 mm
Input speed	500 r/min
Suction water height	2.5 m
Suction Pipe Dia	φ76 mm
Discharge Pipe Dia	φ51 mm
Dimensions	1100 × 995 × 650 mm
Weight	500

Durable Reciprocating Drilling Rig Mud Pump

Product Tags:

portable mud pump

reciprocating mud pump

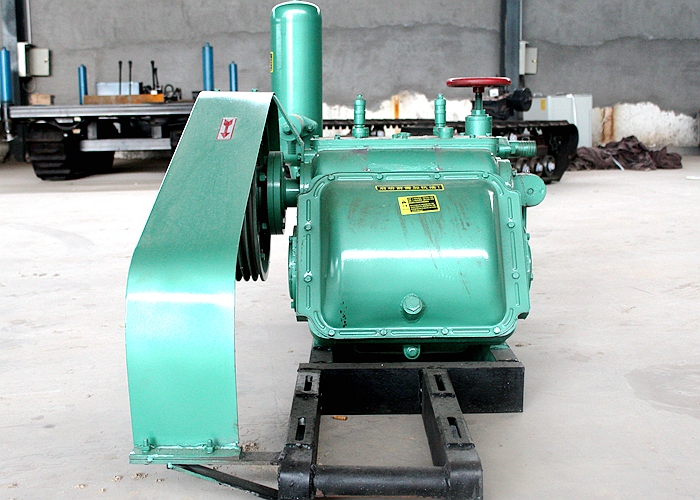

Durable Reciprocating Drilling Rig Mud Pump Images
